BLEMISH 30mm Kart Brake Disc Rotor Carrier Hub

Aluminum kart brake rotor hub.

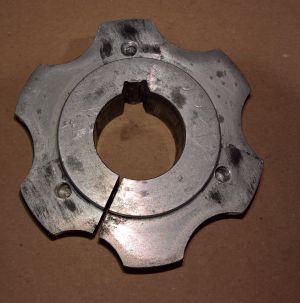

BLEMISH:  The top of the keyway isn't perfectly flat (see photo), but is usable and can be filed if use with a taller key is required.  Otherwise in good working condition.

Dimensions:

• Fits axle size:  30mm


• Rotor mounting hole pattern:  (3x) holes on ~63mm circle at centers (distance between adjacent holes ~54mm at centers)


• Rotor mounting hole size:  M6 threaded blind holes


• Rotor hub center O.D.:  54mm nominal


• Keyway:  ~7.4mm wide x ~3.5mm tall (see "blemished" description above)


• Pinch bolt:  (1x) M6 cap head bold, included


• Overall diameter:  ~85mm


• Overall width:  ~28.75mm
